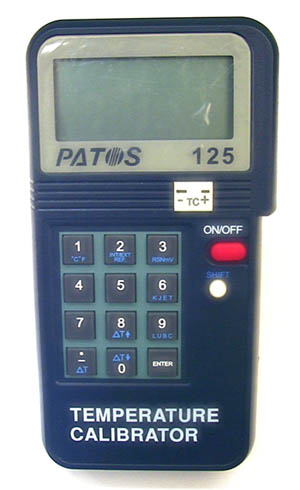

TEMPERATURE CALIBRATOR 125

Features :

11 Types of Thermocouples (K,J,E,T,R,S,N,L,U,B,C)
°C°F°K, (Absolute Temperature)
0.1°C, 0.1°F, 0.1oK Resolution
Internal / External Temperature Reference

Auto-Ramp and △T functions
Easy Just-Type-in-Number Operation

Specifications:
Type Tange Accuracy
Intrnl
Temperature Reference
Extrnl
Temperature Reference
K  -200 ~-100
 -100     -25
 -25      120
 120   1000
 1000 1370
 -320 ~-148
 -148   -13
 -13      248
  248   1832
 1832  2500
  ±0.5   /   ±0.9
    0.4             0.7
    0.4             0.7
    0.4             0.8
    0.5             1.0
 ±0.3    /   ±0.5
    0.2              0.3
    0.2              0.3
    0.2              0.4
    0.3              0.6
J  -210 ~-100
 -100     -30
 -30       150
 150      760
 760    1130
 -340 ~-148
 -148     -22
 -22      302
  302   1400
  1400 2030
  ±0.4  /    ±0.8
    0.4             0.7
    0.4             0.7
    0.4             0.7
    0.4             0.8
  ±0.2℃   /    ±0.4
    0.2              0.3
    0.3              0.3
    0.3              0.3
    0.2              0.4
T  -250 ~-150
 -150        0
   0        120
  120     400
 -410 ~-238
 -238       32
  32       248
  248     750
  ±0.7   /   ±1.3
    0.4             0.8
    0.4             0.7
    0.4             0.7
  ±0.5℃   /    ±0.9
    0.2              0.4
    0.2              0.3
    0.2              0.3
E  -250 ~-100
 -100     -25
 -25      350
  350    650
  650    850
 -410 ~-148
 -148     -13
 -13      662
  662  1202
 1202 1550
  ±0.6   /   ±1.1
    0.4             0.7
    0.4             0.7
    0.4             0.7
    0.4             0.7
  ±0.4   /    ±0.7
    0.2              0.3
    0.2              0.3
    0.2              0.3
    0.2              0.3
R   0  ~    250
  250    400
  400  1000
 1000 1760
  40 ~   482
  482    752
  752  1832
 1832 3210
  ±0.7   /   ±1.3
    0.5             1.0
    0.5             0.9
    0.5             1.0
  ±0.5   /    ±0.9
    0.3              0.6
    0.3              0.5
    0.3              0.6
S  0  ~     250
 250   1000
 1000 1400
 1400 1760
  40  ~  482
  482  1832
 1832 2552
 2552 3210
  ±0.7  /    ±1.3
    0.5             1.0
    0.5             1.0
    0.6             1.1
  ±0.5    /   ±0.9
    0.3              0.6
    0.3              0.6
    0.4              0.7
N  -200~-100
 -100 -   25
 -25      120
  120    410
  410  1300
 -320~-148
 -148    -13
 -13      248
  248    770
  770  2370
  ±0.5  /    ±1.0
    0.4             0.8
    0.4             0.7
    0.4             0.7
    0.5             0.8
  ±0.3   /    ±0.6
    0.2              0.4
    0.2              0.3
    0.2              0.3
    0.3              0.4
L  1200~-100
 -100    900
  -320~-148
  -148 1650
  ±0.5  /    ±1.0
    0.4             0.7
  ±0.3   /    ±0.5
    0.2              0.3
U   -200 ~   0
  0        600
  -320 ~  32
   32    1110
  ±0.4  /    ±0.7
    0.4             0.7
  ±0.2        /   ±0.3
    0.2              0.3
B   600 ~ 800
  800  1000
 1000 1550
 1550 1820
 1120~1472
 1472  1832
 1832  2822
 2822  3300
  ±0.7   /   ±1.2
    0.6             1.1
    0.5             1.0
    0.5             0.9
  ±0.5℃   /    ±0.8
    0.4              0.7
    0.3              0.6
    0.3              0.5
C   0 ~    150
  150   650
  650   1000
  1000 1800
  1800 2310
 40  ~   320
 302    1202
 1202  1832
 1832  3272
 3272  4200
  ±0.5   /   ±0.9
    0.4             0.8
    0.5             0.9
    0.6             1.1
    0.9             0.8
  ±0.3   /    ±0.5
    0.2              0.4
    0.3              0.5
    0.4              0.7
    0.7              1.2
General Specification :
Battery Type : 9V Alkaline Battery (External Power Input 9~15V)
Display : 4+5 Digits
Operating Temperature : 0 ~ 50℃ (32~122℉)
Operating Humidity : Less than 85% relative
Storage Temperature : -20 ~ 60(4~140℉)
Storage Humidity : Less than 85% relative
Dimensions : 88x168x26mm (3.46”x6.61”x1.30”)
Weight : 330 g / 11.63oz
Accessories : Carrying case x 1 ; Users Manual x 1 ;
K type thermocouple connector ; 9V battery x 1 External Battery Pack(without batteries)

Ranges for Calibrate and Measure Modes

Accuracy
