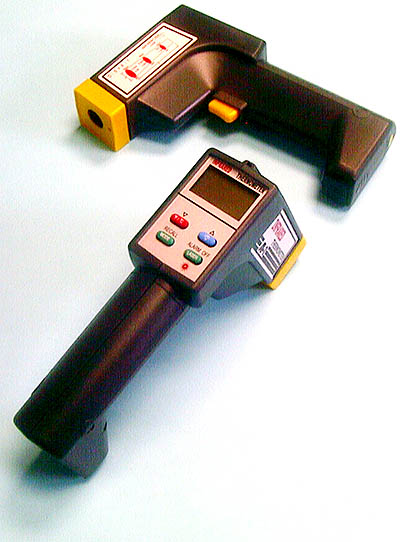

INFRARED THERMOMETER WITH LASER MARKER  MODEL:AZ 8866

DISPLAY BACK-LIGHT










Lightweight & Portable

Adjustable Emissivity (from 0.3 to 1.0)

SPECIFICATION

Features AZ 8866
Temp. Range -20oC ~ 420oC  0oF~788oF
Accuracy +/- 2%  or  2oC
   From -10C ~ 420C at 18~28oC
(64~84F) Ambient Temperature
Repeatability +/- 1oC or 2oF
Response Time 500ms
Emissivity 0.3~1.0 Adjustable

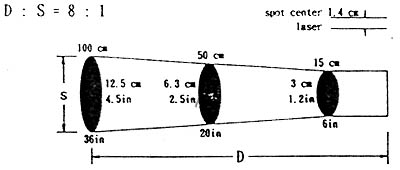

Distance/Spot Ratio 8:1
C/F Switchable YES
Backlight YES
Max/Min/ T/Avg. YES
9 Point Memory YES
Laser Sighting YES
Audio Alarm YES
Operating Temp. 10 ~ 40oC, 10 ~ 90% Relative Himidity
Auto Power Off YES
Vinyl Carrying Case Included
LCD :19x34(mm); 3/4" x 1 3/8" (inch)
Battery :Single 9V battery
Battery Life :100 hrs
Dimension :49x116x208(mm);1.9x4.6x8.2(inch)
Weight 238 gram
Battery Low Indicator





A ONE UNION CO., LTD.
5F, No. 99, Sec. 3, Nangang Road., Nangang District, Taipai City 115 63, Taiwan
TEL : 886-2-27882828  FAX : 886-2-27882727
URL : http://www.aone.com.tw  E-Mail: lingling@aone.com.tw
